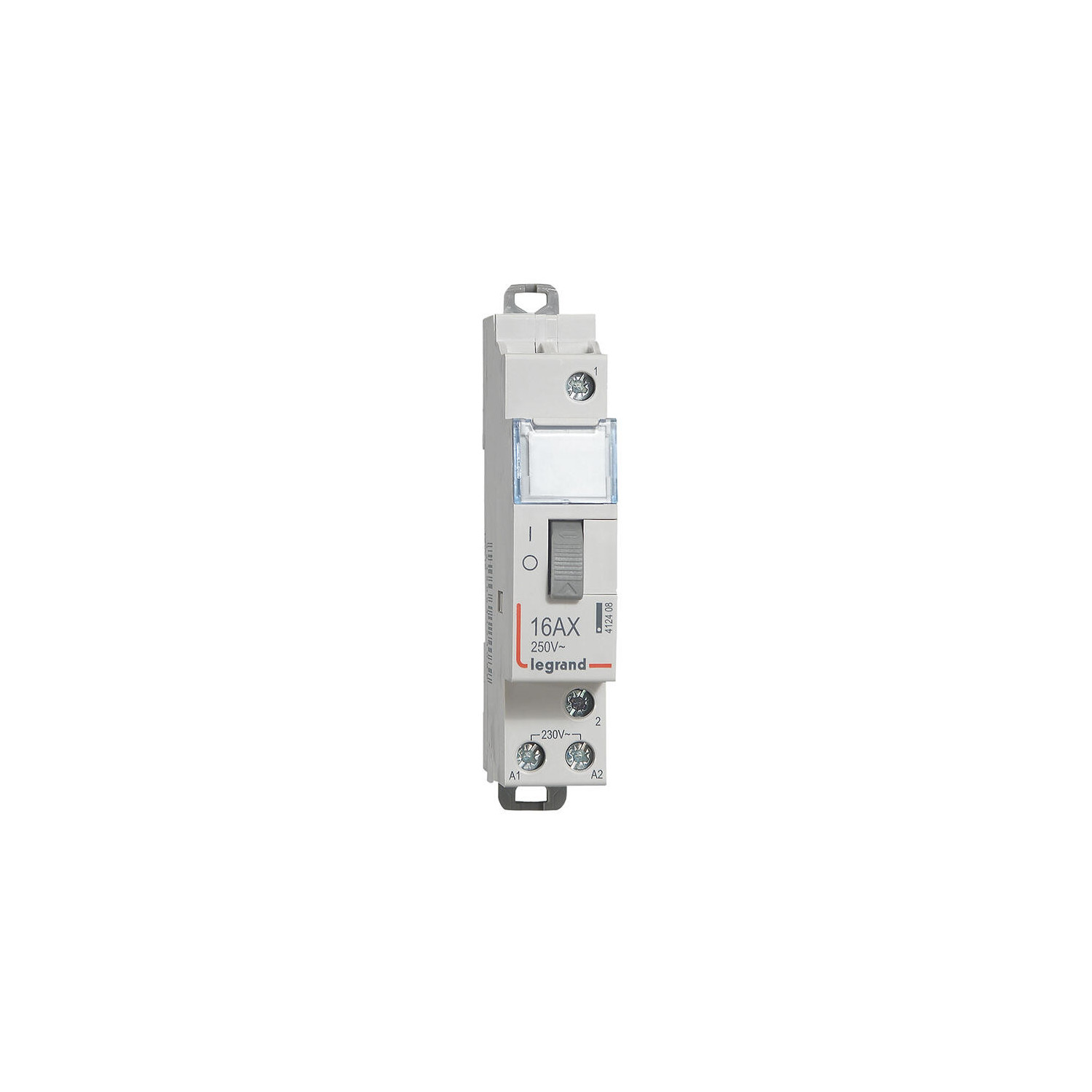

Description
Technical Characteristics
Main electrical features
Rated operational voltage Ue: 250 V
Frequency: 50/60 Hz
Voltage
Rated insulation voltage: 250 V
DC control voltage: 110 V
Command voltage AC: 230 V
Electric current
Quiescent current: 6 mA
Rated current: 16 A
Frequency
Frequency: 50 to 60 Hz
ower
Inrush power absorbed: 25 VA
Total power loss under IN: 1,2 W
Resistance
Winding resistance: 1225 ?
Endurance
Electrical durability at nominal load in AC21in operating cycles: 150000
Number of mechanical operations: 500000
Dimensions
Depth of installed product: 63 mm
Height of installed product: 83 mm
Width of installed product: 17,5 mm
Installation, mounting
Tightening torque: 1,6Nm
Connection
Connection cross-sect. flexible conductor: 1 / 6mm²
Connection cross-sect. rigid cable: 1,5 / 10mm²
Number of contacts: 1
Type of contacts: 1NO
Type of connection: with screw
Equipment
Type of latching relay: electromechanic
With slide for manual switch: yes
Use
Pulse duration: 50 ms
Standards
European directive WEEE: concerned
Safety
Protection index IP: IP20
Use conditions
Operating temperature: -5…40 °C
Storage/transport temperature: -40…80 °C
